What is a Milestone Chart? Free Milestone Charts With Samples and Templates

Ever feel lost in the chaos of construction projects? Are you ahead of schedule, on track, or falling behind? A milestone chart provides a powerful solution to answer these questions. It is a visual roadmap of your project that highlights all the big moments and key accomplishments along the way. The beauty of milestone charts is that they take all the complicated timelines and schedules we deal with and boil them down to the essentials.

This guide will explain what a milestone chart is, why it’s essential for managing construction projects, and how you can create one effectively. We’ll also provide templates and examples to help you get started immediately.

What is a Project Milestone?

Before diving into milestone charts, it’s essential to understand the term “project milestone.” In project management, milestones are critical points that represent a significant achievement or stage within the timeline. They aren’t tasks but checkpoints marking progress toward the project’s completion.

In a construction project, project milestones examples might include completing the foundation, framing the building, or passing a key inspection. These project milestones help track whether major goals are being met on schedule, ensuring that the project progresses as planned.

For a solid foundation in structuring project timelines, check out this helpful guide on project scheduling.

What is a Milestone Chart?

A milestone chart is a tool that visually represents these significant milestones along the project timeline. Unlike more detailed Gantt charts, which include every task, a milestone chart focuses only on the most important stages of the project, offering a high-level view of progress and upcoming goals. This condensed view is helpful for stakeholders and managers who need a quick status update.

In construction project management, milestone charts can serve as a visual checklist, marking essential stages in the timeline. This clarity helps everyone from clients to team members stay on the same page, understanding critical deadlines without getting lost in the details.

Key Components of a Milestone Chart

milestone chart in project management should contain specific elements to communicate each milestone’s details clearly. Here are the main components:

• Project Start and End Dates: Define the total project duration, so each milestone is contextualized within the project’s timeframe.
• Milestones and Milestone Due Dates: List each milestone along with its specific completion date. For example, “Foundation Completed – April 15.”
• Task Dependencies: Show any dependencies between milestones, like “Framing Completion” preceding “Roof Installation.”
• Assignees or Task Owners: Specify the team members or departments responsible for each milestone.
• Project Timeline: Arrange milestones chronologically, providing a straightforward project roadmap.
• Resource Requirements and Estimated Costs: Although optional, adding expected resource needs and costs at each milestone can support budget planning and tracking.

What are the Benefits of Using a Milestone Chart

Milestone charts bring several advantages to project management, particularly in large-scale construction projects where clarity, communication, and accountability are essential. Here’s why they’re invaluable:

• Improved Project Scheduling and Tracking: Milestone charts help project managers see at a glance whether major project stages are on track.
• Clear Communication of Project Progress: They provide an easily digestible overview, ideal for client updates or team check-ins.
• Task Prioritization and Resource Allocation: Milestone charts highlight priority tasks, helping focus resources where they’re needed most.
• Enhanced Team Motivation and Accountability: Team members stay engaged and motivated, knowing their deadlines and the larger project context.
• Ideal for Managing Large, Complex Projects: Milestone charts simplify tracking and communication in projects with many moving parts.

Different Types of Milestone Charts

Milestone charts come in various formats, depending on the project’s needs. Here are two common types used in project management, particularly construction:

• Timeline Chart with Milestones: This chart shows milestones along a simple, linear timeline, making it ideal for a high-level overview. Each milestone is displayed in chronological order.
• Gantt Chart with Milestones: Gantt charts incorporate milestones alongside tasks and dependencies. This format is useful for projects requiring a more detailed view, where milestones are tied to ongoing tasks.

How to Create a Milestone Chart

Creating an effective milestone chart involves careful planning, clear communication, and the right tools. Follow these steps to develop a milestone chart that will keep your construction project organized and on track:

1. Define Project Goals and Objectives

Identify Key Project Outcomes: Determine the overall goals and deliverables of the project. These objectives guide your choice of milestones.

Translate Objectives into Milestones: For instance, if your goal is to complete a new office building, key milestones could include “Site Preparation,” “Structural Framing,” and “Interior Finishing.”

Ensure Team Alignment: Ensure all team members understand the project’s goals and the significance of each milestone.

2. Create a Task List and Assign Responsibilities

Break Down the Project into Tasks: Develop a list of all tasks required to reach each milestone, such as excavation, framing, electrical, and plumbing.

Assign Tasks to Team Members: Assign responsibilities to specific individuals or teams for each task. This fosters accountability and clarifies who is responsible for each project phase.

3. Identify Key Milestones

Select Significant Points of Progress: Choose milestones that signify major project stages, such as “Foundation Poured” or “Inspection Approved.”

Exclude Non-Essential Tasks: Avoid cluttering the chart with minor tasks. Only include milestones that indicate clear advancement toward project goals.

Ensure Consistency Across Milestones: Each milestone should represent a similar level of importance to maintain the chart’s clarity.

4. Set Deadlines and Establish Dependencies

Assign Completion Dates: Set achievable deadlines for each milestone to ensure timely progression toward project goals.

Outline Dependencies: Identify task dependencies, such as “Foundation Completion” needing to precede “Framing Begins,” to avoid schedule conflicts.

Plan for Potential Delays: Account for possible delays, such as weather or supply chain issues, by building buffer time into milestone dates.

5. Build a Timeline Using Project Management Software

Use a Tool for Visualization: Software like Mastt can help you create visual timelines quickly, with easy-to-use drag-and-drop features for timeline adjustments.

Choose the Appropriate Chart Format: Select a timeline view for high-level tracking or a Gantt chart with milestones for detailed tracking of dependencies.

Add Color Coding and Labels: Use colors or labels to indicate the status of each milestone (e.g., “In Progress” or “Completed”) for quick visual reference.

6. Add Documentation and Notes

Attach Supporting Documents: Include any relevant documents or instructions for each milestone, such as permit requirements or inspection checklists.

Add Notes for Clarity: Provide descriptions or notes to clarify milestone significance, especially for team members unfamiliar with specific project phases.

Mark Approval Points: Identify any milestones requiring stakeholder approval to streamline project communication.

7. Share the Milestone Chart with Stakeholders

Share the Chart with the Entire Team: Ensure all team members understand key deadlines and responsibilities to maintain alignment.

Gather Feedback from Stakeholders: Solicit feedback, make necessary adjustments, and finalize the chart with stakeholder approval.

Establish Regular Updates: Plan to revisit and update the milestone chart periodically, allowing for adjustments in response to project shifts or unexpected delays.

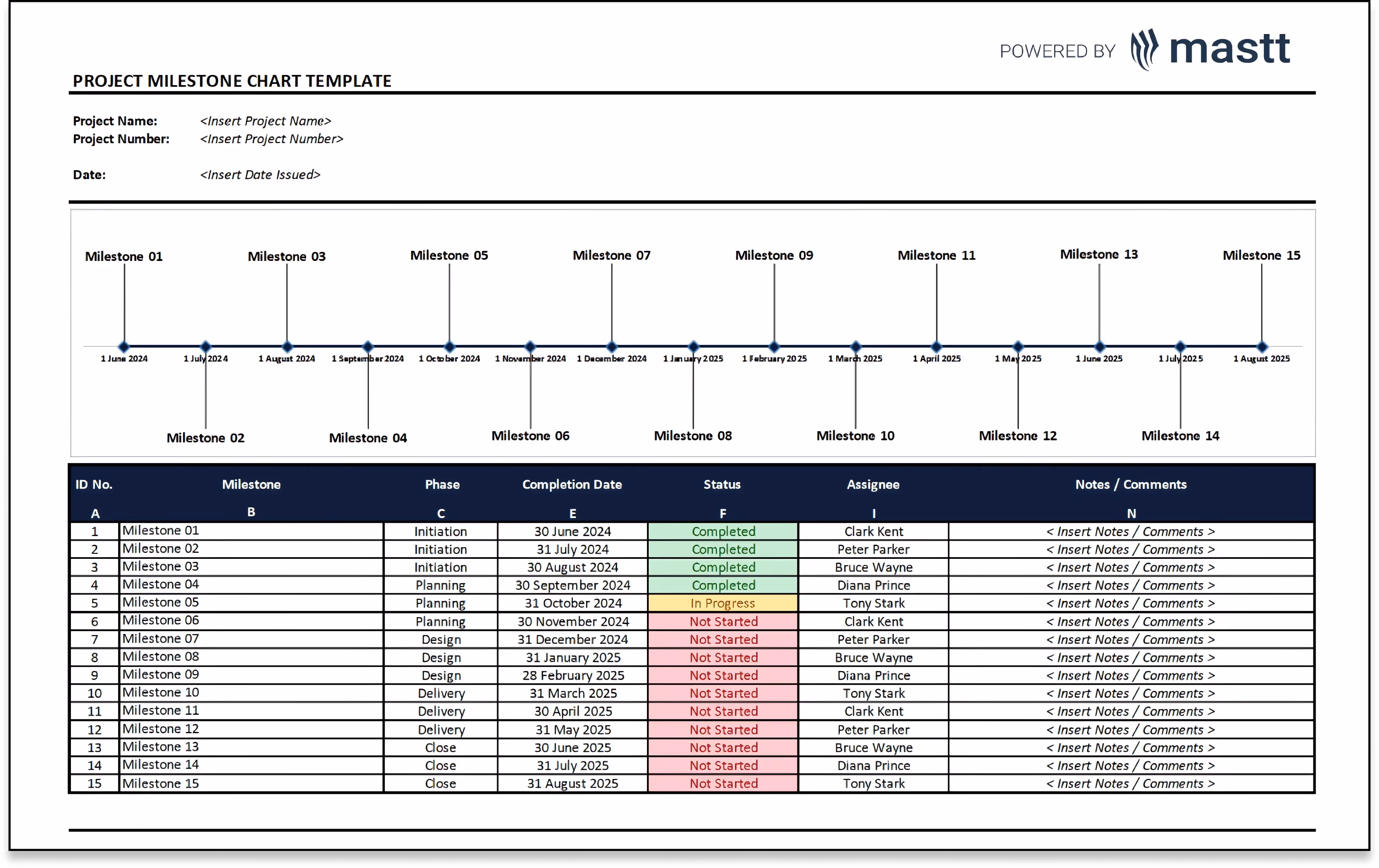

Free Milestone Charts with Samples and Templates

Save time and improve project tracking with our Free Milestone Chart Excel Template. This template is designed for easy customization and helps you visually manage key milestones. Here’s how to get started:

• Download & Customize: Add your project name, branding, phases, and key deadlines.
• Identify Major Milestones: List critical milestones like kickoff, phase completions, inspections, and handovers.
• Enter Dates: Set start and completion dates to keep your team aligned.
• Visualize the Timeline: Track the sequence of milestones to spot scheduling conflicts early.
• Monitor & Update: Regularly update with actual completion dates and note any delays.
• Share Progress: Review with your team to ensure transparency and informed decision-making.

Why Creating Milestone Charts in Mastt is Better than Using Spreadsheets

While spreadsheets can be used to create milestone charts, our project management software offers significant advantages. With Mastt, you can quickly adjust timelines, assign tasks, and keep the entire team informed—all in real-time. Unlike static spreadsheets, Mastt supports collaboration and automatic updates, making it ideal for complex construction projects. Our streamlined approach enhances efficiency, helping project managers and stakeholders stay aligned.

Conclusion

Milestone charts are indispensable in construction project management, offering clarity, accountability, and efficiency. By breaking down complex projects into key stages, these charts help teams and stakeholders track progress, anticipate upcoming stages, and ensure project goals are met.

If you’re new to milestone charting, start with a basic template and customize it as your project grows. A well-crafted milestone chart can be the difference between a smoothly managed project and one that encounters delays or miscommunication.

Ready to streamline your project management process? Mastt’s powerful platform offers intuitive milestone charting, real-time collaboration, and detailed tracking tools tailored for construction projects. Get started with Mastt today and take your project management to the next level!

‍
